Temperature Signage Hand Sanitizer Kiosk Dispenser

Temperature Signage Hand Sanitizer Kiosk Dispenser

Regular price $380.00 USD
Regular price Sale price $380.00 USD
Sale Sold out
Shipping calculated at checkout.

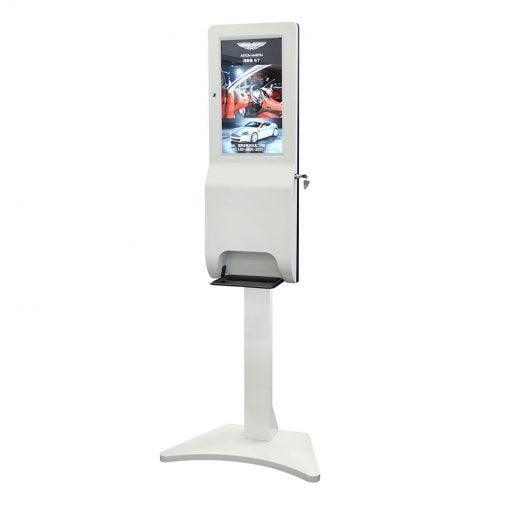

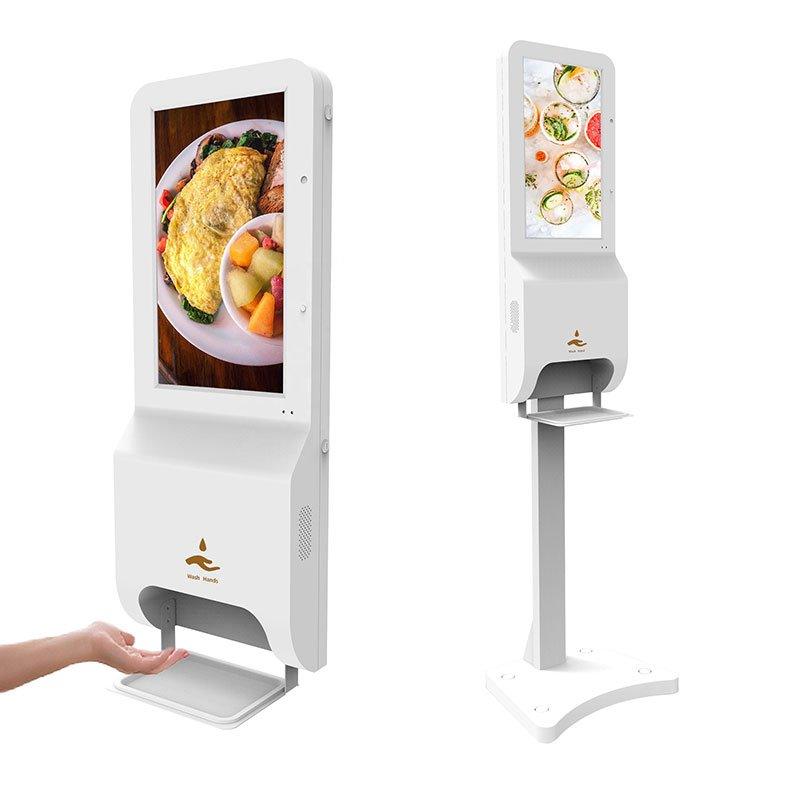

This 21.5 ” Android LCD screen has an auto Hand Sanitizer Dispenser. The multifunctional Kiosk is an interactive android tablet that can be remotely updated. Whilst the automatic dispenser can be used for handwashing, auto-dispensing gel, foam, or other liquid.

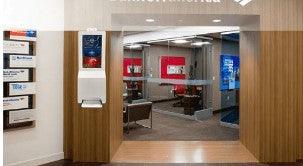

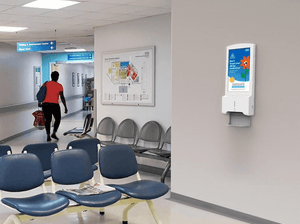

This Kiosk can double as a billboard which can be used in Hospital, Events, Meeting Room, Reception Desk, Hotel Lobby, School, Train Station, Airport, Toilet, etc.

Contact Us for pricing

Features of Digital Signage

1. Android OS 4.2.2 system.
2. Auto upload videos or photos from the software installed in the PC after connecting internet via wifi, even displays are in different places;
3. Support remote content update, upload, delete, support OSD, VOD, loop playback;
4. Support Split screen, Rolling text;
5. Support HD Video resolution: 1920×1080;
6. Support Calendar, Clock;
7. Support 3rd party APK installation;
8. Media files Supported: datob/ mpg/ divx(.avi)/ bmp/ jpgtf/ flash/ office files and so on;
9. Removeable Independent Main Board Box for maintenance;

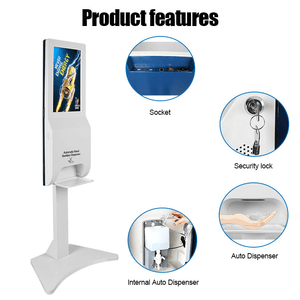

Features of  Auto Dispenser

1. Auto Dispense: Auto Dispense by Sensor, touch free to avoid cross-infection;
2. Power Supply: AC adapter;
3. Auto Identify: Identity the automatically, only work for the authorized one;(Optional)
4. Dispensing Life: The life of our dispenser is more than 650000 times;
Volume: 3600ml
Dispense Volume: Number of Dispensing times can be adjusted to 1,2,3 or 4
Pump: Standard pump for Liquid, Foam, and Gel is optional.
Each drop is about 1ML for Gel; 0.4ML for Foam; 2ML for Liquid.

ITEM SPECIFICATION
CPU Rockchip RK3288W 4-core ARM Cortex-A17 clocked at 1.6GH
Chipset Hi3751 V310
RAM 2GB DDR3 as standard
Storage 16GB
OS Android 7.1
Display 21.5” TFT LCD, 1920 x 1080p, LVDS
Video-Input Format 480i, 576i
Video System PAL / NTSC / SECAM
Video Level 1.0 VP-P +/- 5%
HDMI 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K2K
  UART TTL
USB MPEG 1/2, H.264, VC-1, MPEG-4 up to FHD
TF-Card (1920×1080), RM/RMVB up to 720P
Audio Input CVBS Audio (L/R RCA input, 0.2 ~ 2.0 VRMS)
Audio Decode Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD, MPEG
L1/L2, MP3, AAC_LC, HE_AACV2, LPCM, APE, FLAC, OggVorbis, ARM-NB, ARM-WB, G.711(u/a)
Video Output CVBS (format: 480i, 576i; video level: 1.0VP-P +/- 5%)
Audio Output CVBS Audio L/R RCA Output (250mVRMS +/- 10%)
Frequency 100Hz ~ 15KHz @ +/-3dB (0dB reference signal at
Response 1KHz)
Max. Output 2 x 8W (8ohm) THD+N < 10% @ 1KHz
Power
Power DC 12V (DC input)
3.3V / 5V / 12V (to panel)
Standby Power Consumption < 0.5W
Connection WIFI 802.11 b/g/n, built-in module optional, need ANT
Ethernet 10/100M auto-identification and DHCP, USB driver
Data Network 3G/4G
COMB Filter 3D
Deinterlace 3D
Work Temp. -10 ~ 55oC
Storage Temp. -10 ~ 60oC
